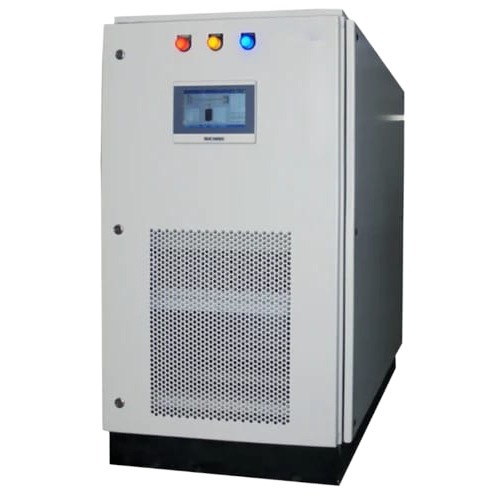

Active Harmonic Filter ( AHF)

Get a Price/Quote

MOQ : 1 Unit

Active Harmonic Filter ( AHF) Specification

Product Type
Active Harmonic Filter (AHF)

Material
Metal Enclosure

Capacity
50A to 600A (customizable)

Output Power
Rated up to 600 kVA

Protection
Overload, Short Circuit, Overvoltage, Overtemperature

Output Voltage
380V/400V/415V AC

Output Current
Up to 600A

Output Type
Three Phase

Current Waveform
Sinusoidal (THDi <5%)

Application
Industrial, Commercial, Data Centers, Hospitals

Size
Standard Cabinet Mounted

Weight
110-350 kg (varies by rating)

Dimension (L*W*H)
600x600x2000 mm (varies by model)

Color
RAL 7035 Grey

Rated Frequency
50/60 Hz

Control Technology
DSP-Based Digital Control

Switching Device
IGBT

Cooling Method
Forced Air Cooling

Compliance
IEC 61000-4-7, IEC 61000-4-30

Installation Type
Floor Mounted or Wall Mounted

Operating Temperature
-10C to 45C

Communication Interface
Modbus, RS485, Ethernet (optional)

Efficiency
>97%

Response Time
<300 s

Parallel Operation
Up to 8 Units

Display
LCD Touch Screen

Active Harmonic Filter ( AHF) Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Active Harmonic Filter ( AHF)

Discover our first-class Active Harmonic Filter (AHF), a venerable solution for superior power quality management. With renowned DSP-based digital control and advanced IGBT switching, this industrial-grade AHF is engineered for both floor or wall mounting. It's available in capacities from 50A to 600A (customizable), with exceptional efficiency over 97% and parallel operation of up to 8 units. Benefit from robust protection systems, a user-friendly LCD touch screen, and reliable communication via Modbus, RS485, or optional Ethernet. Order now to enjoy an exclusive promotion from the trusted supplier, distributor, and manufacturer in India.

Versatile Usage & Special Applications

Active Harmonic Filters (AHFs) are widely used across industrial, commercial, and institutional settings, including hospitals, data centers, and production plants. Their main function is to ensure sinusoidal current waveform (THDi <5%) and optimize power quality. Special features include parallel operation, high protection levels, and customizable capacity, making them indispensable for large-scale electrical installations demanding reliability and compliance with international standards.

Sample Policy & Safe Packaging

Sample units for the Active Harmonic Filter (AHF) are available upon request, ensuring customer satisfaction before placing a Purchase Order. Each unit is securely packed to guarantee safe arrival and integrity during transit. Our sample policy supports evaluation, allowing you to make an informed decision. All deliveries are carefully coordinated, providing peace of mind from packaging to arrival at your site.

FAQ's of Active Harmonic Filter ( AHF):

Q: How does the DSP-based digital control improve the Active Harmonic Filter's performance?

A: The DSP-based digital control enhances the Active Harmonic Filter by providing precise real-time harmonic detection and rapid adjustment, resulting in optimized filtration and improved power quality.

Q: What is the maximum AHF capacity and can it be customized based on project needs?

A: The Active Harmonic Filter offers standard capacities from 50A to 600A, and customization is available to meet specific requirements, making it suitable for diverse industrial and commercial projects.

Q: Where can the AHF be installed, and what mounting options are available?

A: The AHF is designed for versatile installation, suitable for both floor and wall mounting, ensuring it fits seamlessly into various plant layouts or facility environments.

Q: What packaging methods are used for shipping the AHF samples and units?

A: Each AHF unit is securely packaged in robust containers designed to maintain product integrity throughout the shipping process, ensuring safe arrival at your location.

Q: When can I expect my AHF order to arrive after placing a Purchase Order?

A: Once you place a Purchase Order, the delivery timeline depends on your chosen model and location; our team will provide a precise estimate to ensure timely arrival.

Q: What are the key applications and benefits of using an AHF in a facility?

A: AHFs offer significant benefits such as improved power quality, protection for sensitive equipment, and compliance with international standards, making them essential for data centers, manufacturing plants, hospitals, and commercial buildings.
